  • The Secret to Unlocking Your Data's Full Story

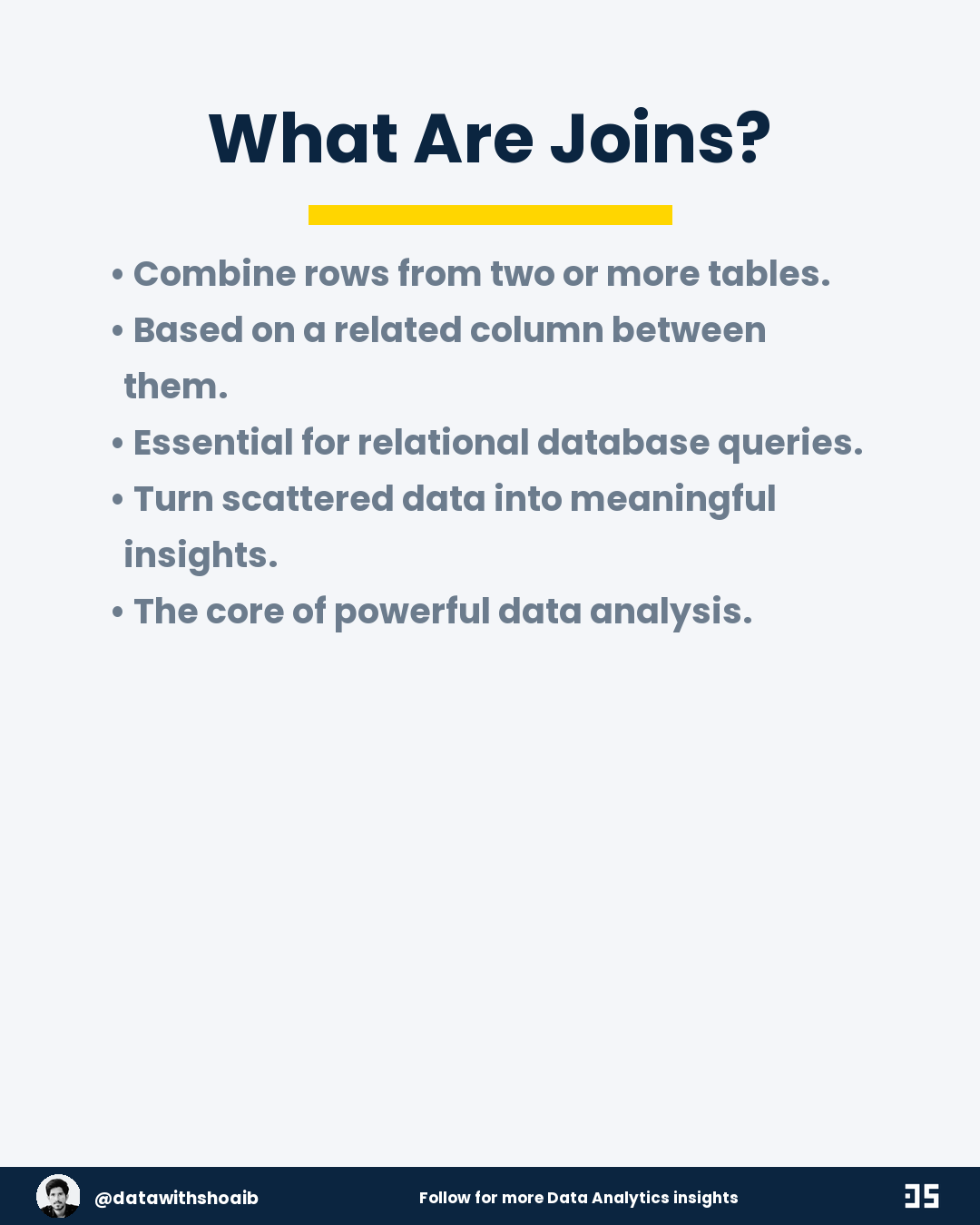

What Are Joins?

  • Combine rows from two or more tables.
  • Based on a related column between them.
  • Essential for relational database queries.
  • Turn scattered data into meaningful insights.
  • The core of powerful data analysis.

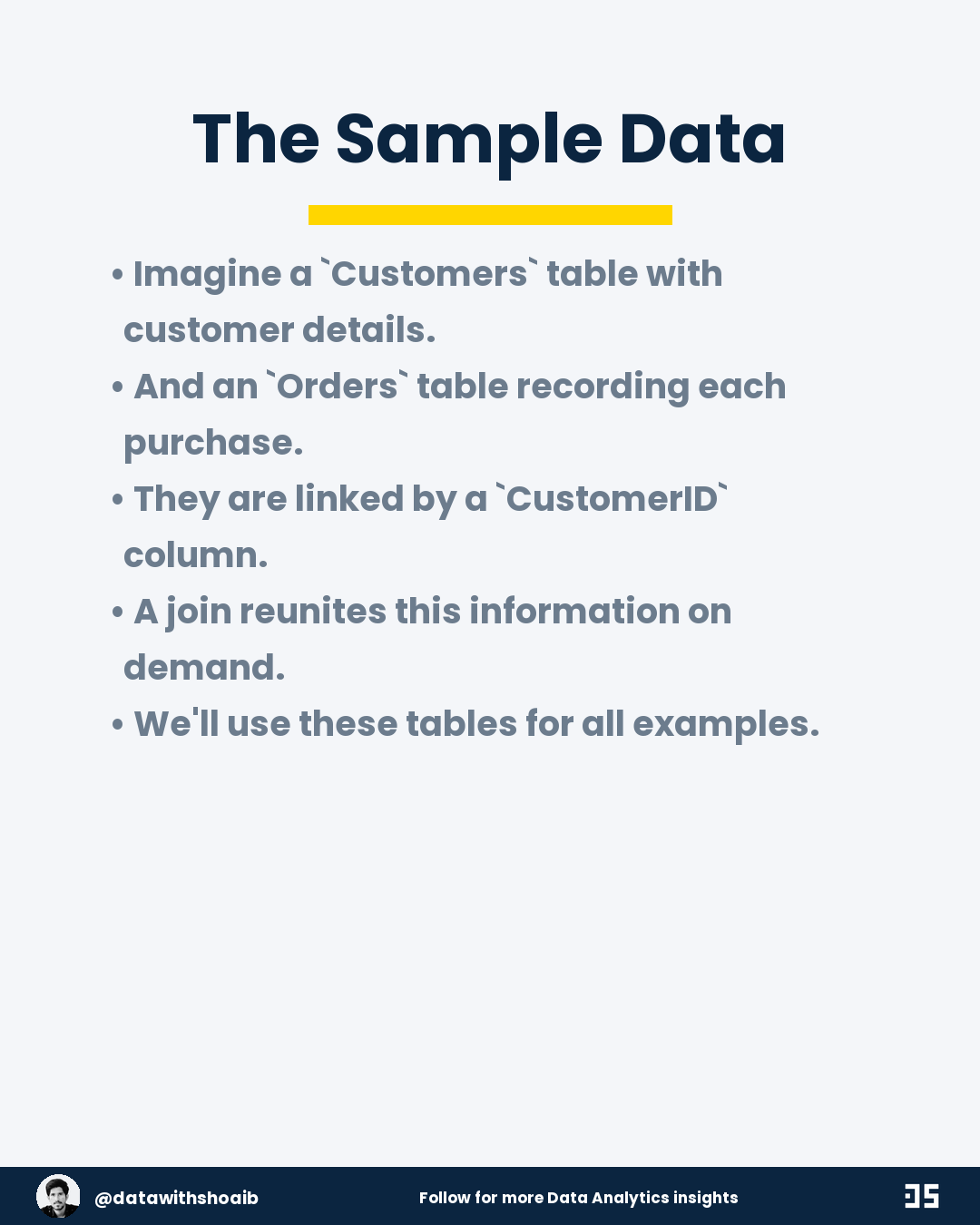

The Sample Data

  • Imagine a `Customers` table with customer details.
  • And an `Orders` table recording each purchase.
  • They are linked by a `CustomerID` column.
  • A join reunites this information on demand.
  • We'll use these tables for all examples.

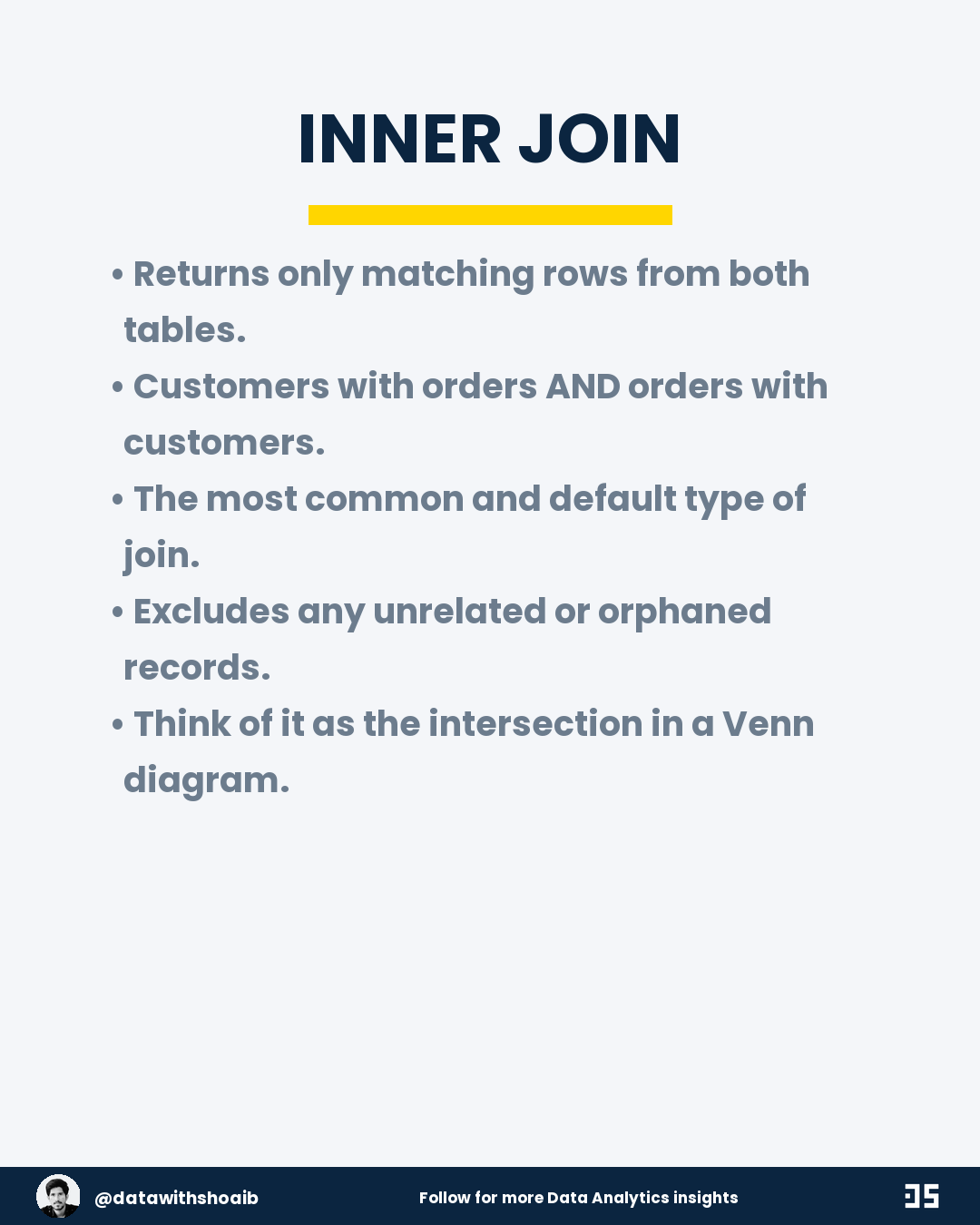

INNER JOIN

  • Returns only matching rows from both tables.
  • Customers with orders AND orders with customers.
  • The most common and default type of join.
  • Excludes any unrelated or orphaned records.
  • Think of it as the intersection in a Venn diagram.

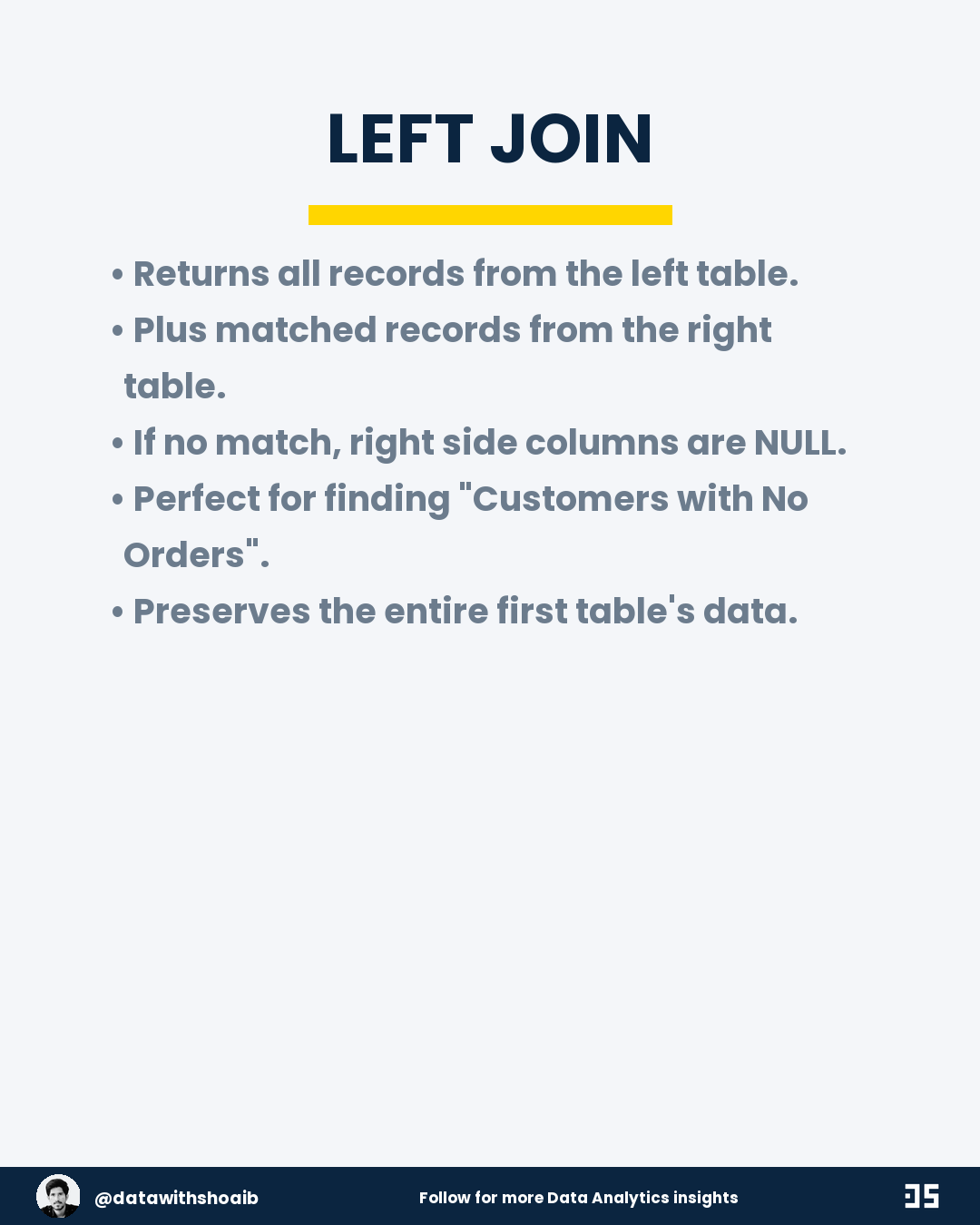

LEFT JOIN

  • Returns all records from the left table.
  • Plus matched records from the right table.
  • If no match, right side columns are NULL.
  • Perfect for finding "Customers with No Orders".
  • Preserves the entire first table's data.

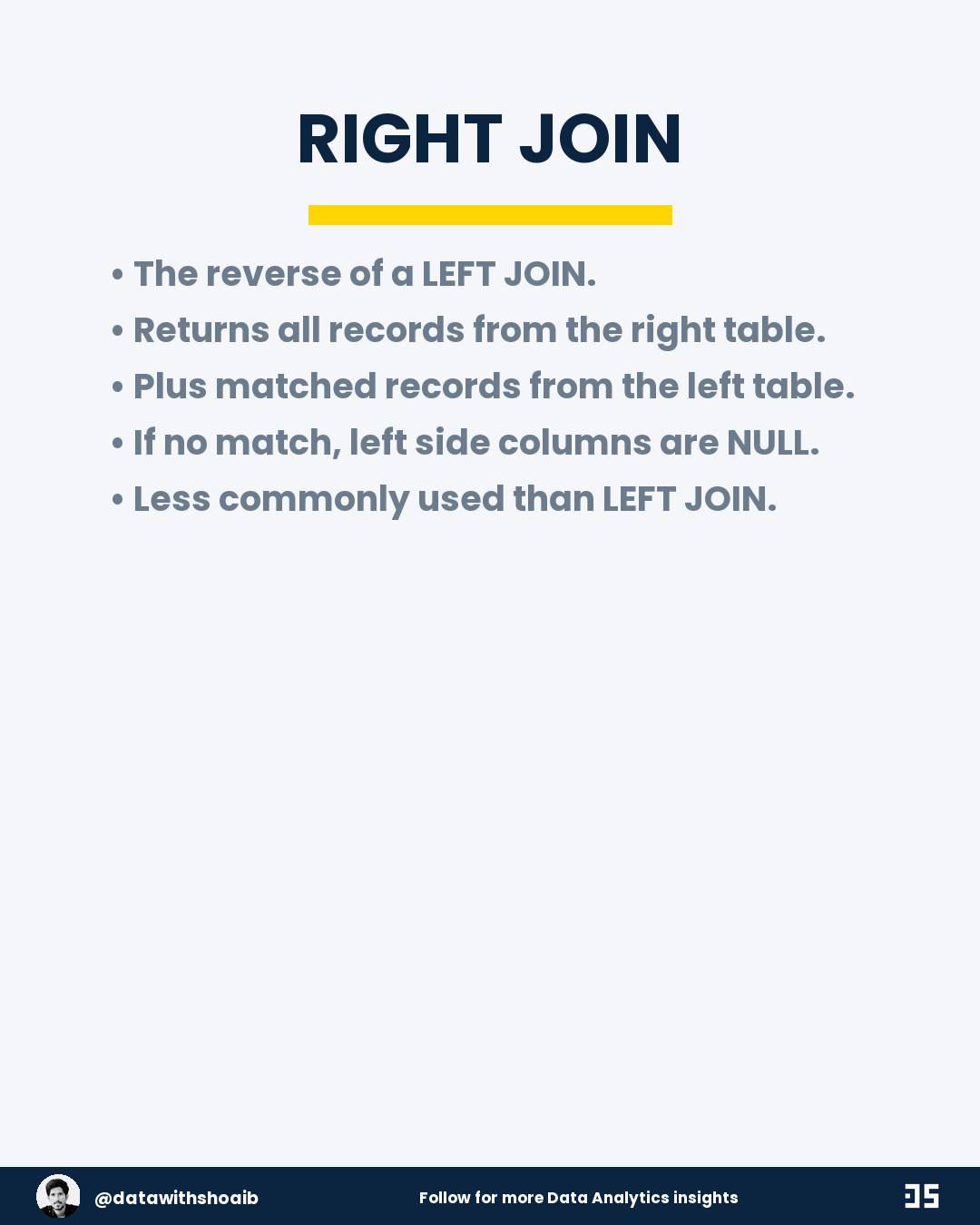

RIGHT JOIN

  • The reverse of a LEFT JOIN.
  • Returns all records from the right table.
  • Plus matched records from the left table.
  • If no match, left side columns are NULL.
  • Less commonly used than LEFT JOIN.

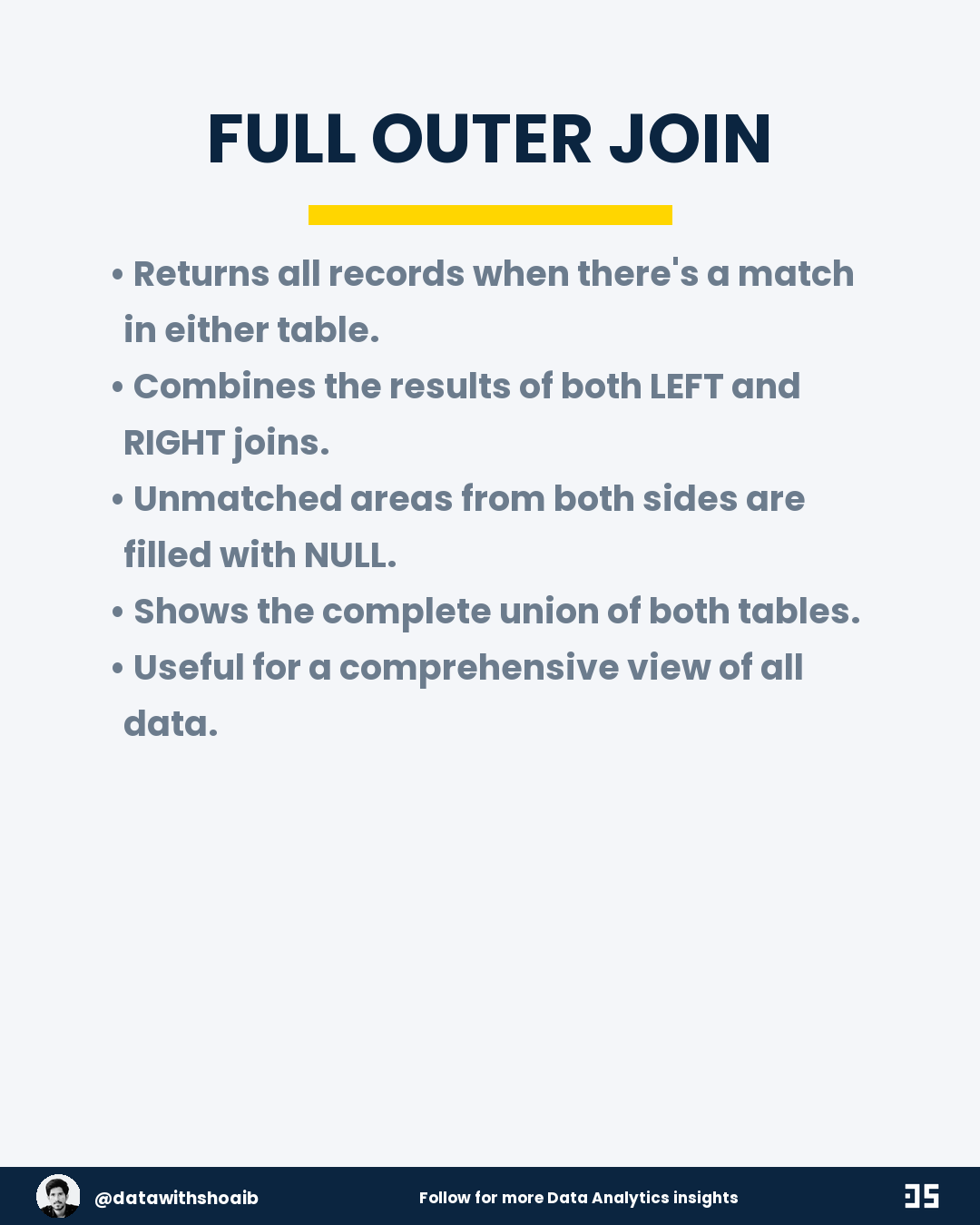

FULL OUTER JOIN

  • Returns all records when there's a match in either table.
  • Combines the results of both LEFT and RIGHT joins.
  • Unmatched areas from both sides are filled with NULL.
  • Shows the complete union of both tables.
  • Useful for a comprehensive view of all data.

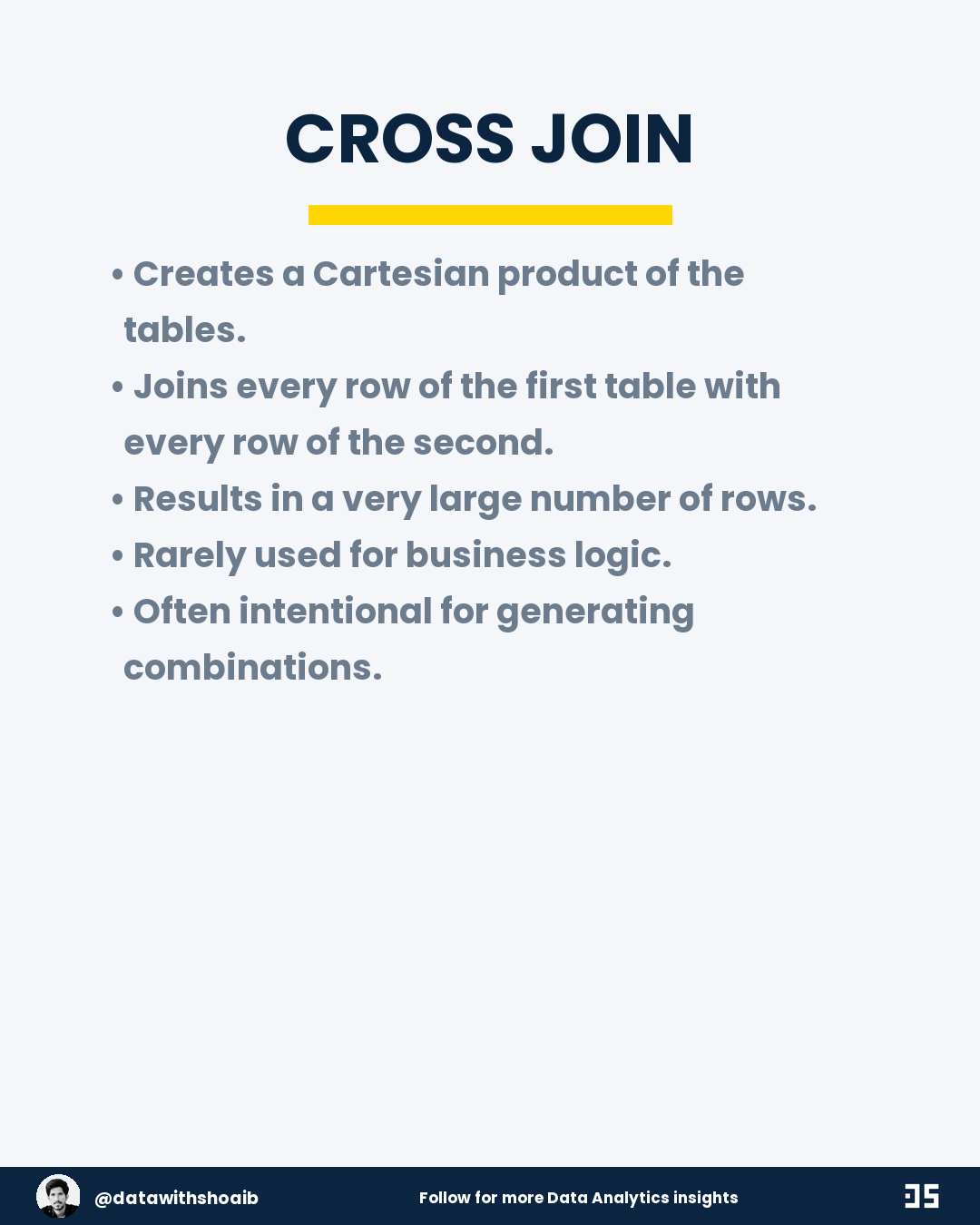

CROSS JOIN

  • Creates a Cartesian product of the tables.
  • Joins every row of the first table with every row of the second.
  • Results in a very large number of rows.
  • Rarely used for business logic.
  • Often intentional for generating combinations.

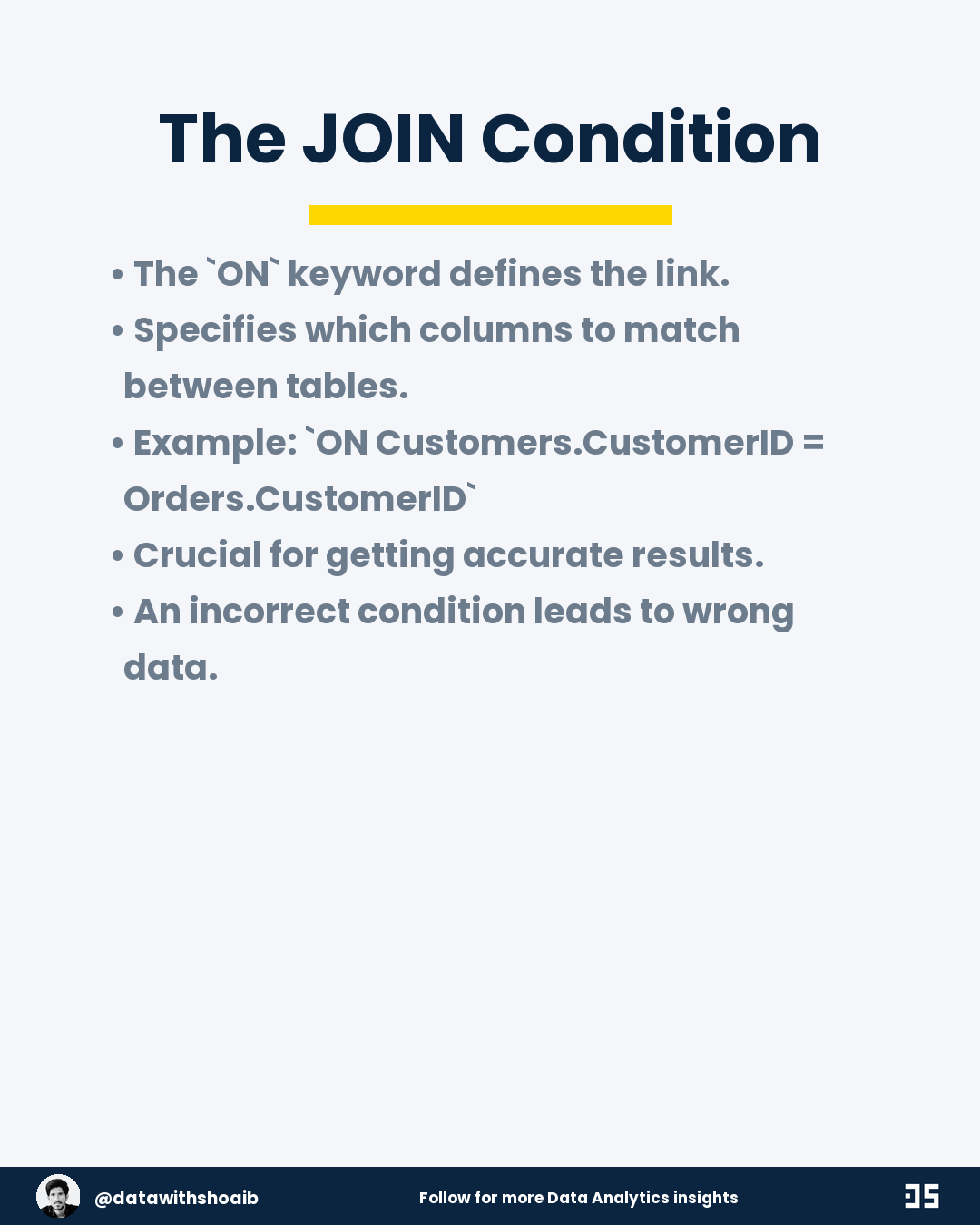

The JOIN Condition

  • The `ON` keyword defines the link.
  • Specifies which columns to match between tables.
  • Example: `ON Customers.CustomerID = Orders.CustomerID`
  • Crucial for getting accurate results.
  • An incorrect condition leads to wrong data.

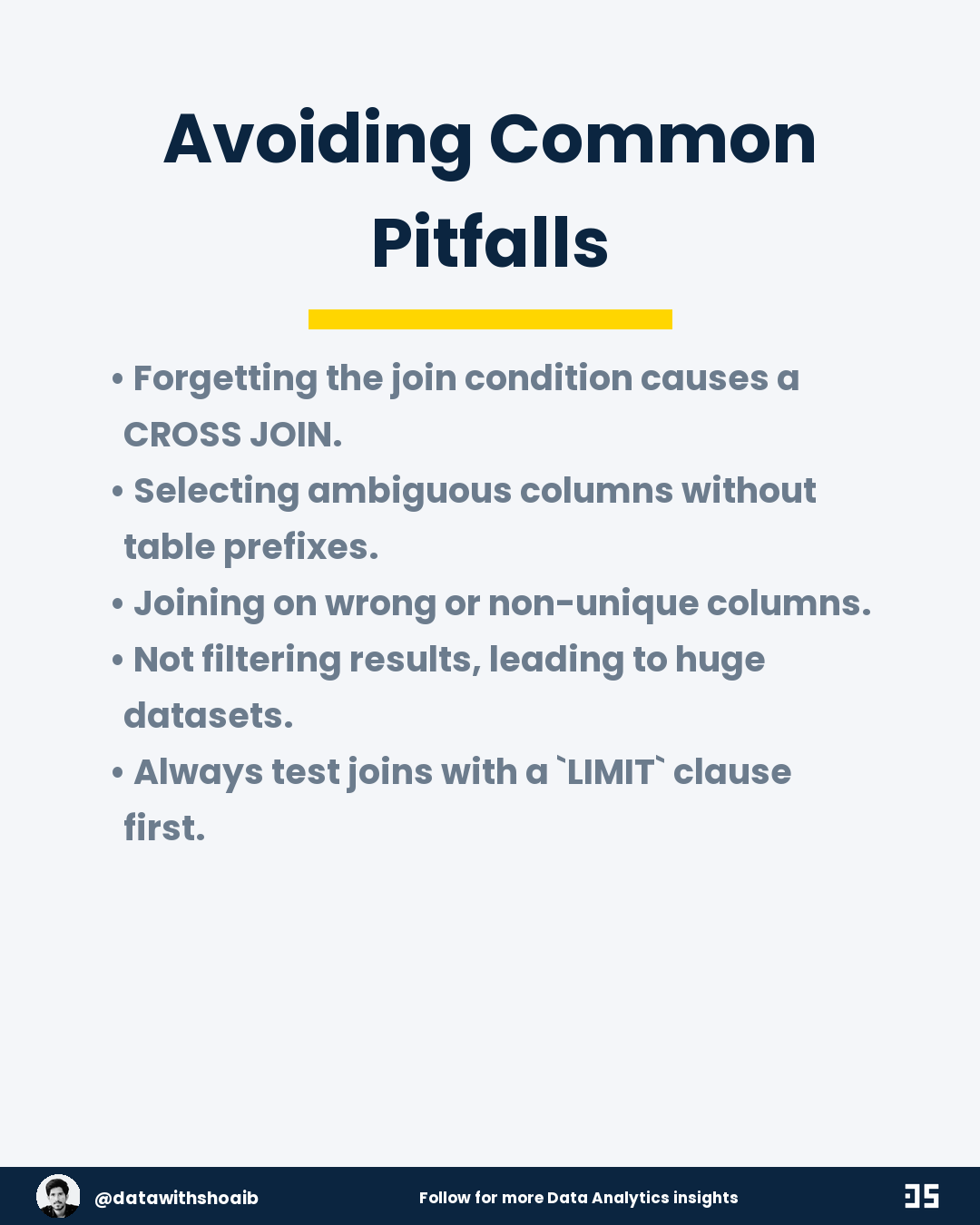

Avoiding Common Pitfalls

  • Forgetting the join condition causes a CROSS JOIN.
  • Selecting ambiguous columns without table prefixes.
  • Joining on wrong or non-unique columns.
  • Not filtering results, leading to huge datasets.
  • Always test joins with a `LIMIT` clause first.

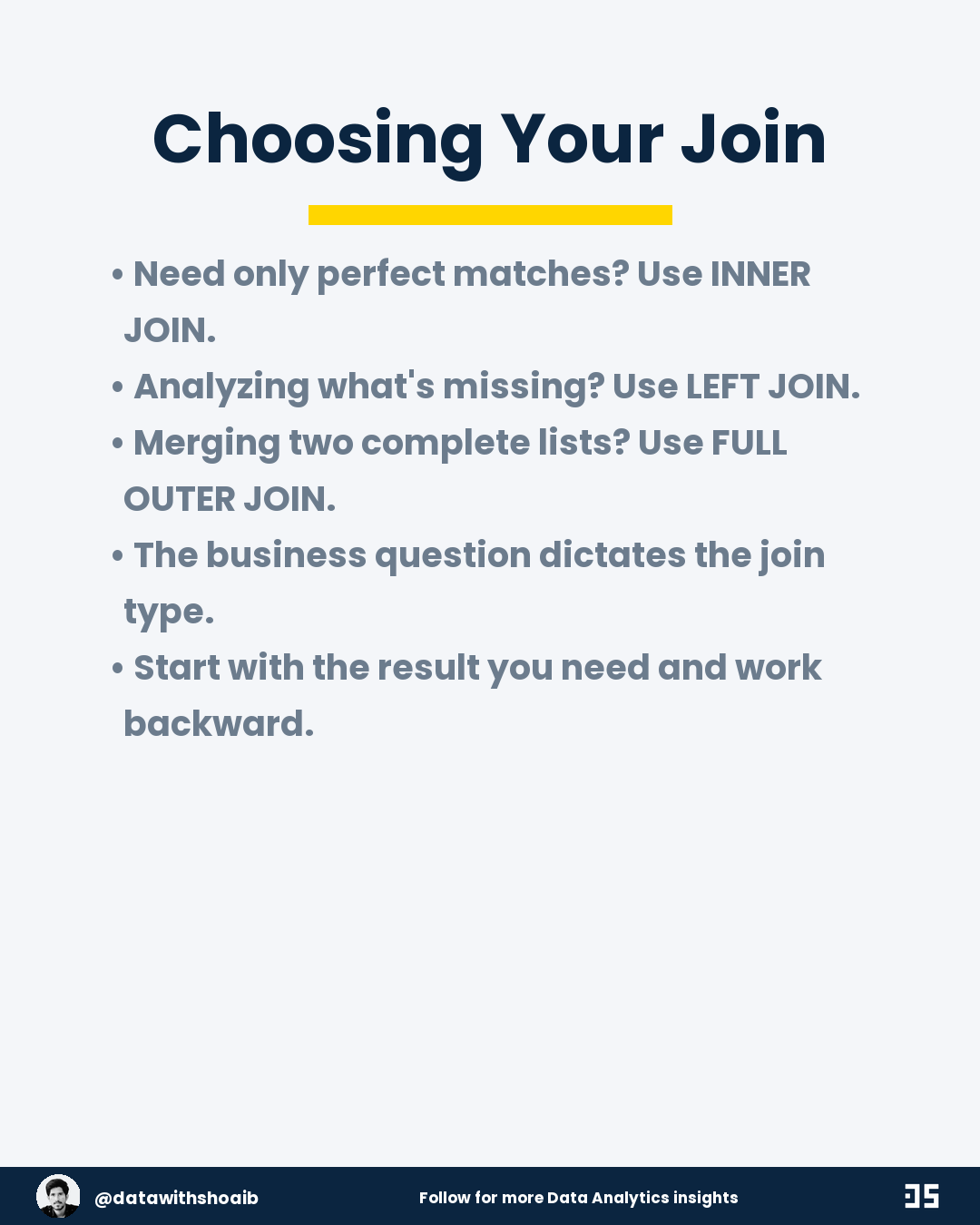

Choosing Your Join

  • Need only perfect matches? Use INNER JOIN.
  • Analyzing what's missing? Use LEFT JOIN.
  • Merging two complete lists? Use FULL OUTER JOIN.
  • The business question dictates the join type.
  • Start with the result you need and work backward.

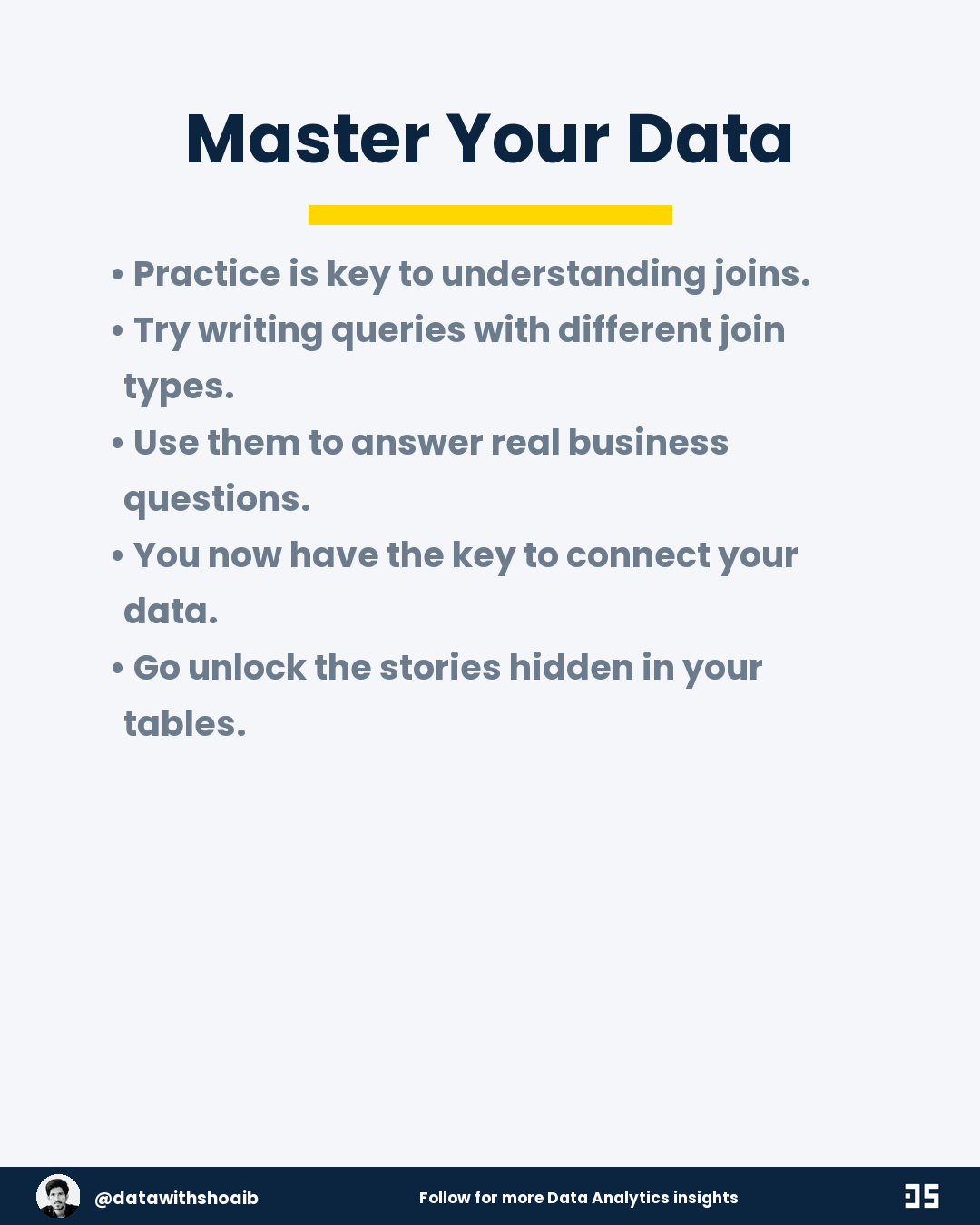

Master Your Data

  • Practice is key to understanding joins.
  • Try writing queries with different join types.
  • Use them to answer real business questions.
  • You now have the key to connect your data.
  • Go unlock the stories hidden in your tables.
