Database Keys Explained The Superheroes of Data.

Use and to navigate
Swipe left / right on mobile

Guide Notes & Explanation

Accompanying breakdown for this slide deck

  • Database Keys Explained: The Superheroes of Data

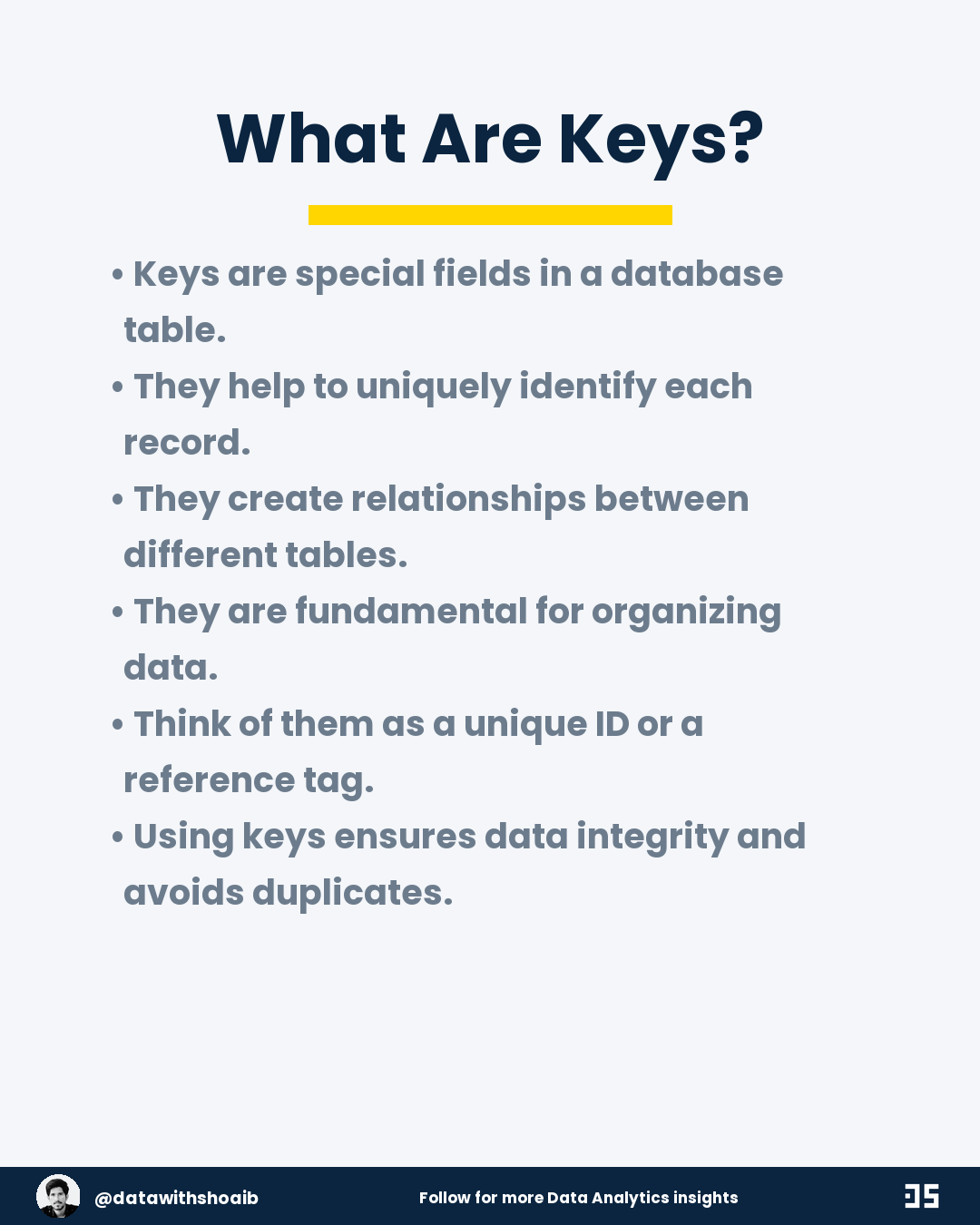

What Are Keys?

  • Keys are special fields in a database table.
  • They help to uniquely identify each record.
  • They create relationships between different tables.
  • They are fundamental for organizing data.
  • Think of them as a unique ID or a reference tag.
  • Using keys ensures data integrity and avoids duplicates.
  • They make finding and linking information fast and efficient.

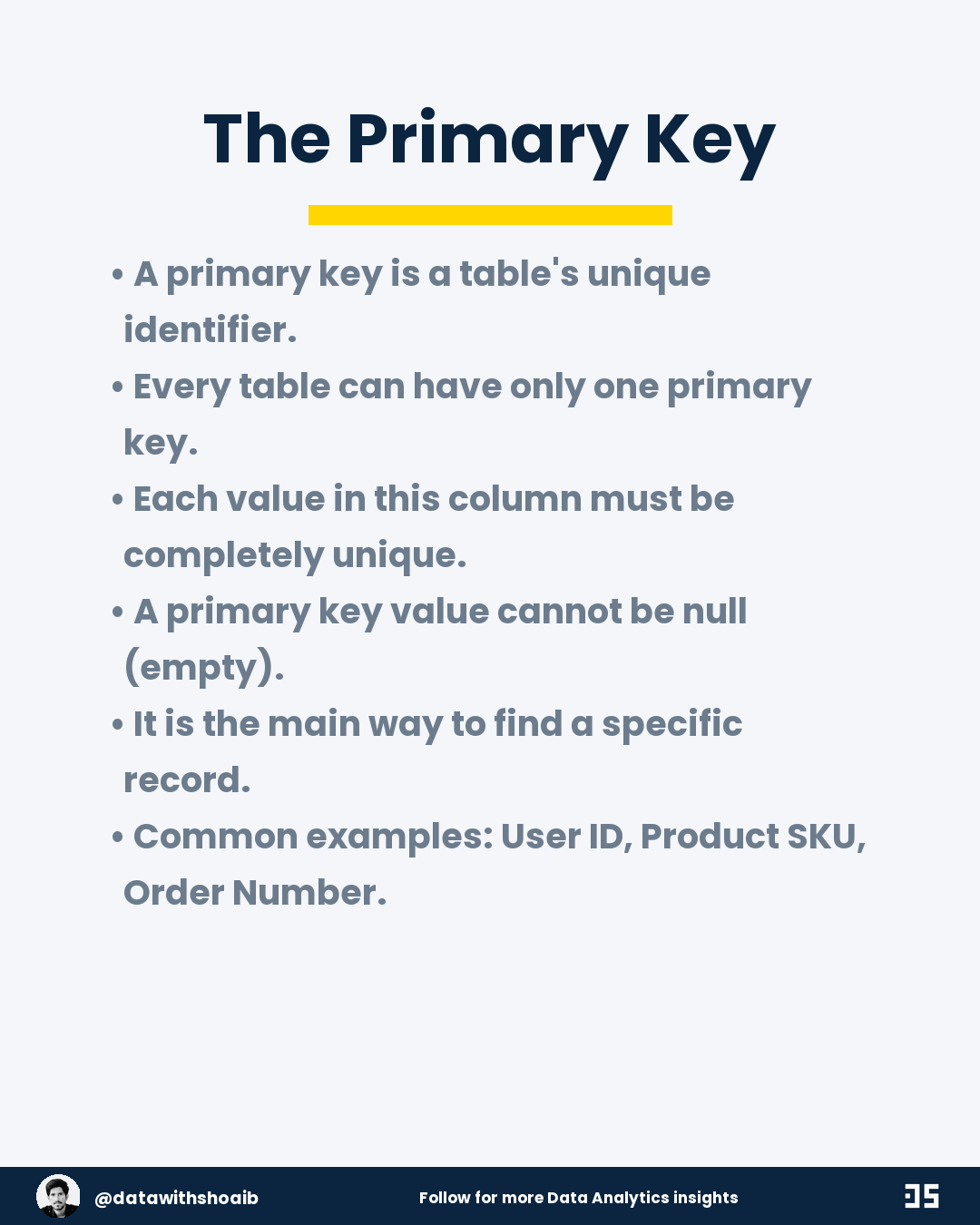

The Primary Key

  • A primary key is a table's unique identifier.
  • Every table can have only one primary key.
  • Each value in this column must be completely unique.
  • A primary key value cannot be null (empty).
  • It is the main way to find a specific record.
  • Common examples: User ID, Product SKU, Order Number.
  • It guarantees no two rows are identical.

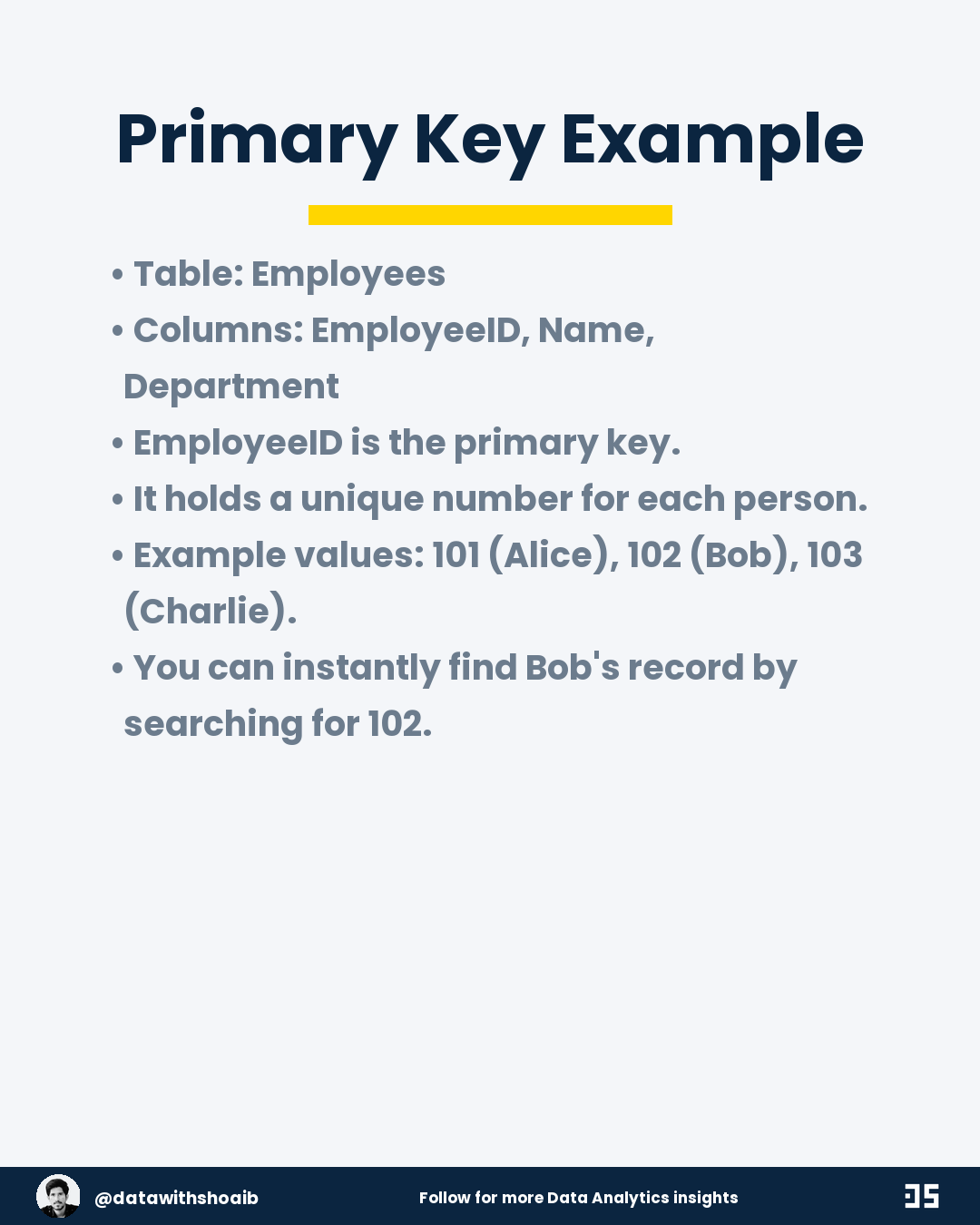

Primary Key Example

  • Table: Employees
  • Columns: EmployeeID, Name, Department
  • EmployeeID is the primary key.
  • It holds a unique number for each person.
  • Example values: 101 (Alice), 102 (Bob), 103 (Charlie).
  • You can instantly find Bob's record by searching for 102.
  • No other employee can ever have the ID 102.

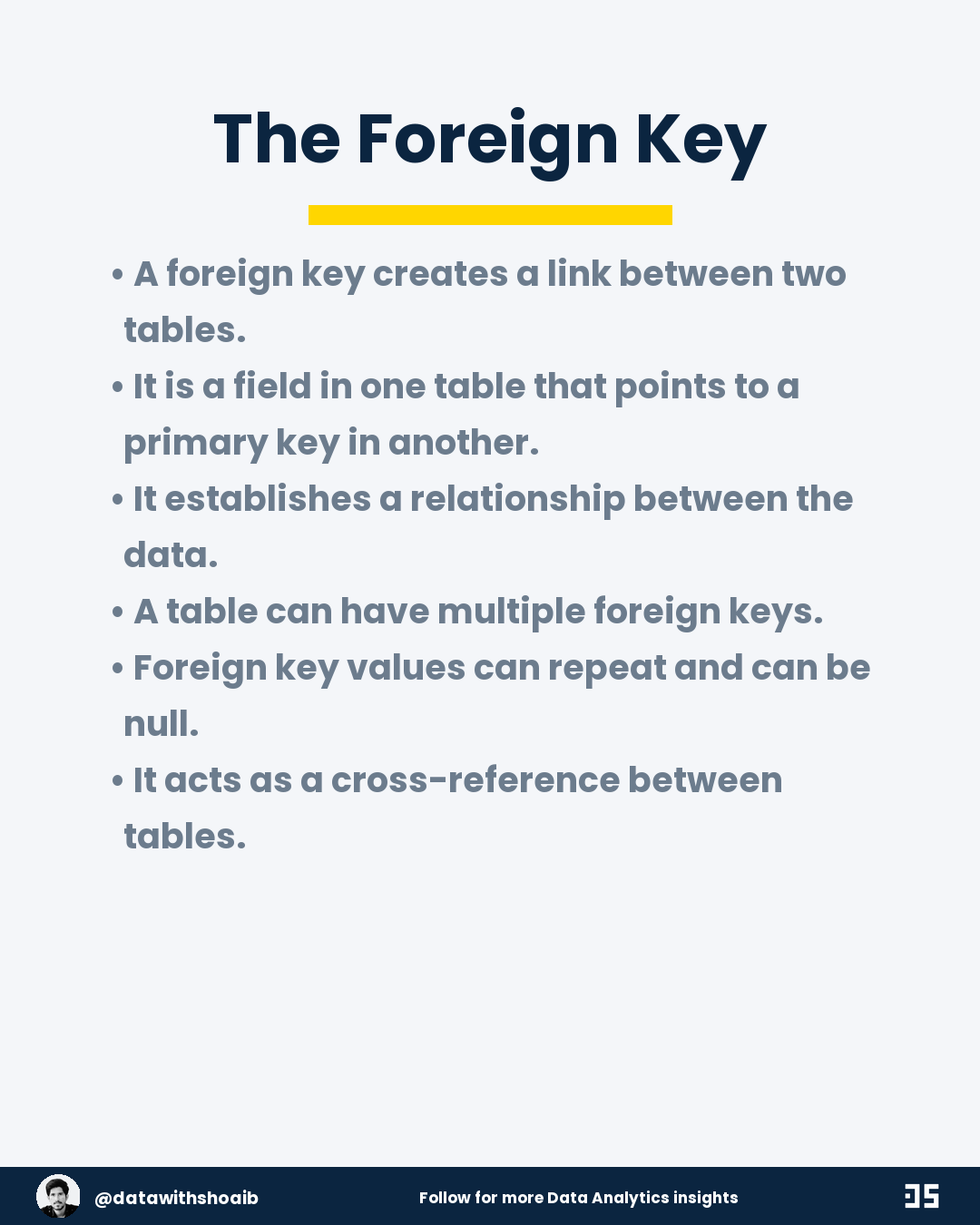

The Foreign Key

  • A foreign key creates a link between two tables.
  • It is a field in one table that points to a primary key in another.
  • It establishes a relationship between the data.
  • A table can have multiple foreign keys.
  • Foreign key values can repeat and can be null.
  • It acts as a cross-reference between tables.
  • It ensures consistency across related data.

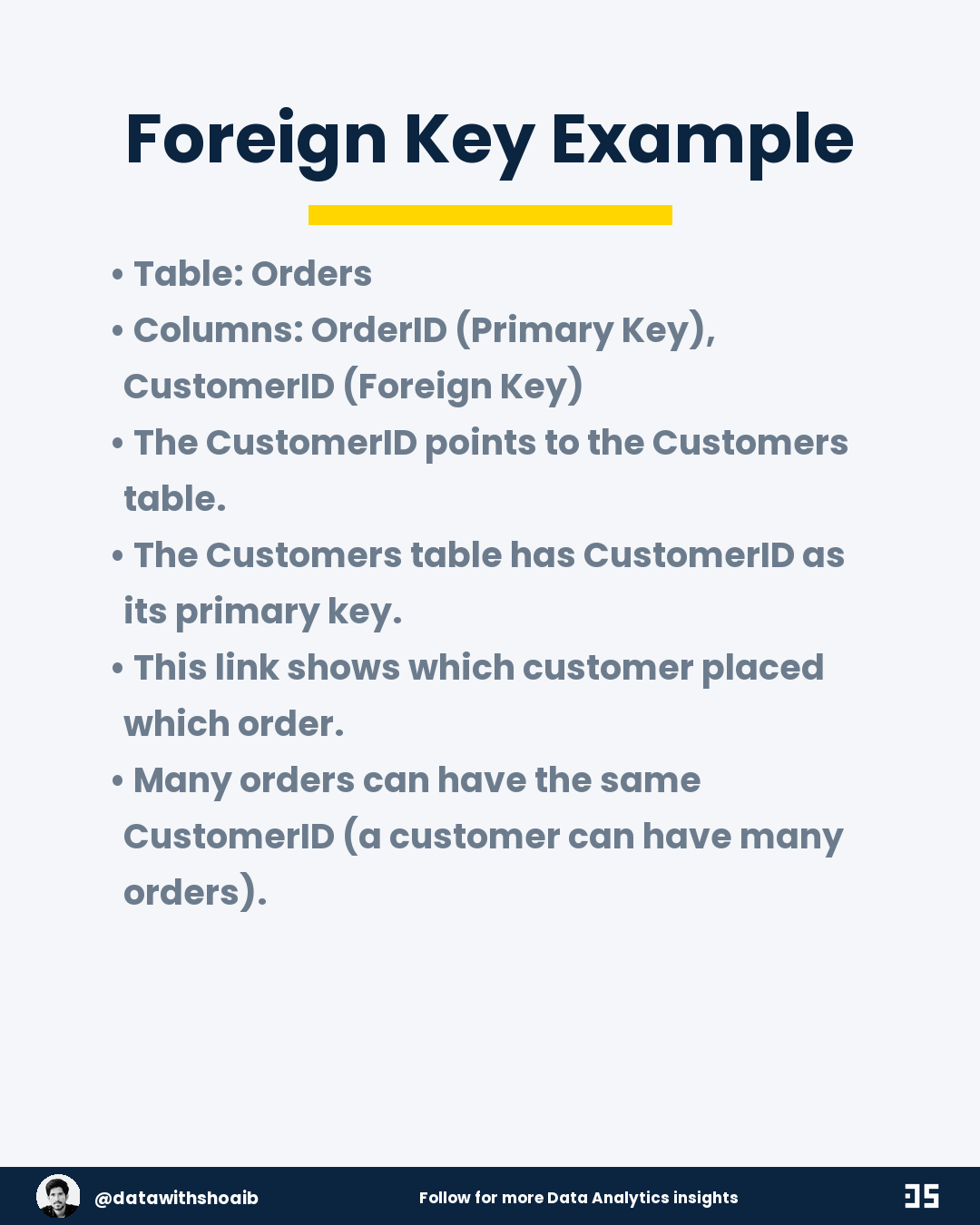

Foreign Key Example

  • Table: Orders
  • Columns: OrderID (Primary Key), CustomerID (Foreign Key)
  • The CustomerID points to the Customers table.
  • The Customers table has CustomerID as its primary key.
  • This link shows which customer placed which order.
  • Many orders can have the same CustomerID (a customer can have many orders).
  • This connects the order data to the specific customer data.

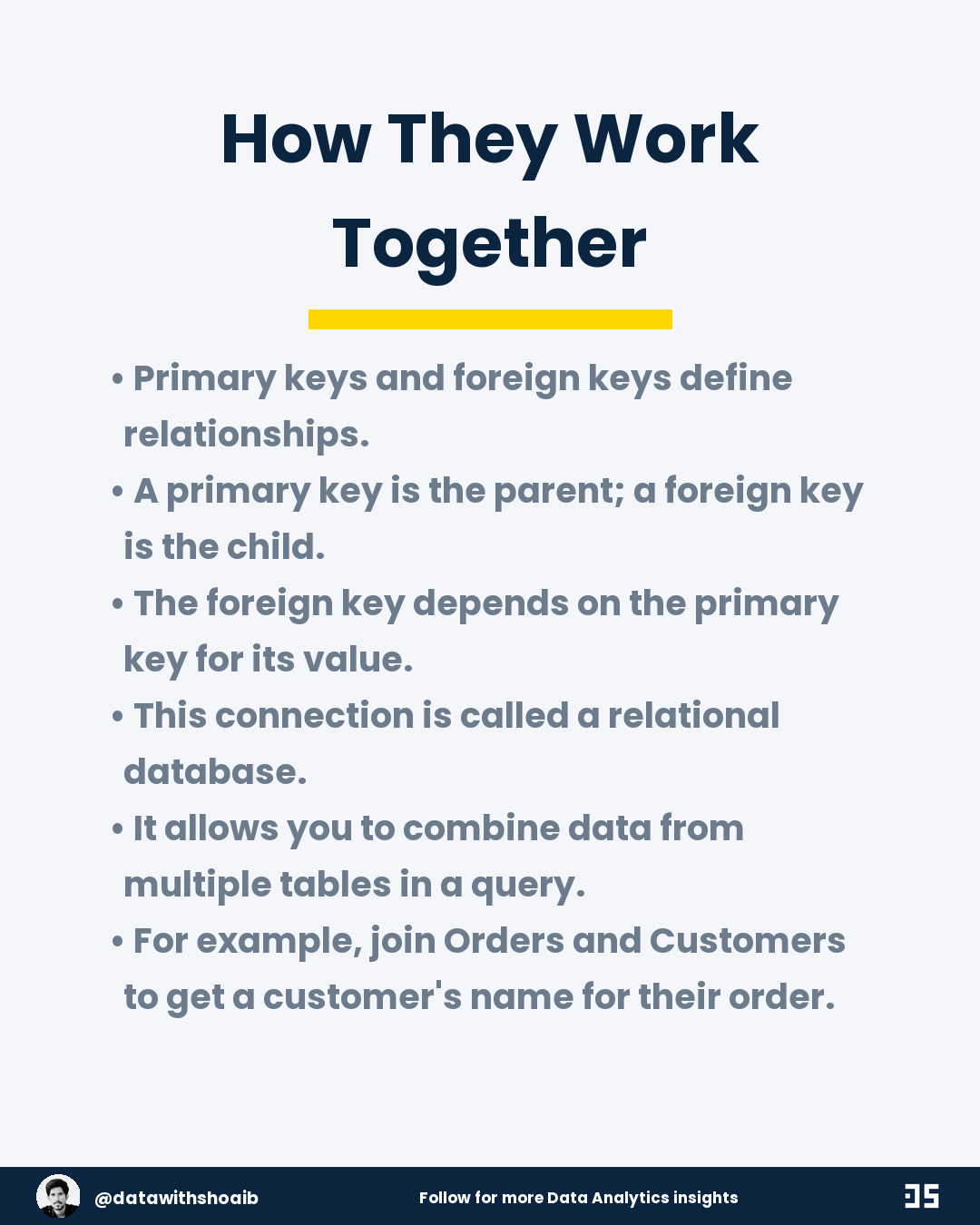

How They Work Together

  • Primary keys and foreign keys define relationships.
  • A primary key is the parent; a foreign key is the child.
  • The foreign key depends on the primary key for its value.
  • This connection is called a relational database.
  • It allows you to combine data from multiple tables in a query.
  • For example, join Orders and Customers to get a customer's name for their order.
  • This keeps data organized and non-repetitive.

Quick Recap

  • Primary Key: Unique ID for a table's records.
  • Foreign Key: A reference to a primary key in another table.
  • Primary Key = Your Social Security Number.
  • Foreign Key = Your SSN listed on your tax forms.
  • PK ensures uniqueness within its own table.
  • FK creates a reliable link to a different table.
  • Together, they form the backbone of relational databases.
